Product Introduction Applicable raw materials Product Parameter Features Inquiry

Product Introduction

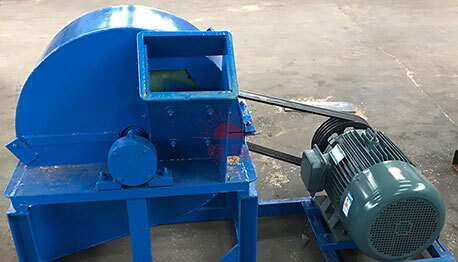

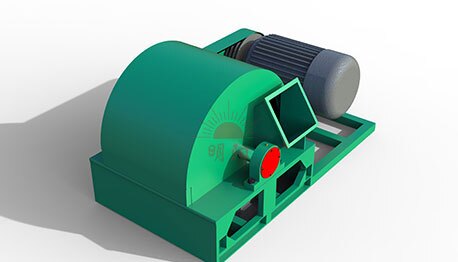

Wood crusher is a kind of chipping and crushing equipment especially for raw material with 50-220 mm (diameter). We can match wood crusher to get the suitable material diameter (3-5mm fine powder) at first. During the working process, the raw material will be chipped, re-crushed and sieved, the wood crusher machine combines both chipping and crushing in one machine to get the wood sawdust directly.

Applicable raw materials

all kinds of crop stalk, cotton firewood, pine, miscellaneous wood, waste wood, bamboo straw,etc.

Product Parameter

Model	Power(kw)	Capacity(kg/h)	Feed port size(mm)	Blades number(pcs)
DSJ420	7.5/11	300-500	150*150	4
DSJ500	15/18.5	500-600	180*200	4
DSJ600	22/30	800-1500	230*220	4
DSJ800	45/55	1200-2000	250*250	6
DSJ1000	55/75	1500-4000	270*270	8
DSJ1200	75/90	3000-8000	330*330	8
DSJ1500	110/132	4000-10000	420*400	8

Features

01 Rational design, compact structure, safe and durable, high productivity.
02 Low noise, simple structure, compact layout, competitive price.
03 Stable work, low consumption, high quality, energy saving.
04 Easy to operate and maintain.
05 Long lifetime.
